51748069176 Flap Control Air Duct | Thermal Management Assembly

Name: 51748069176 Flap Control Air Duct | Thermal Management Assembly
Brand: FANCHANTS China Auto Parts Wholesales
Availability: InStock

Product variants

51748069176 Flap Control Air Duct | BMW X2 F39 Cooling System

51748069176 Flap Control Air Duct: Precision Cooling for BMW X2 F39

Engineered exclusively for BMW X2 F39 models, the 51748069176 Flap Control Air Duct optimizes thermal management through intelligent airflow regulation. This critical component features an integrated aerodynamic flap mechanism that dynamically adjusts based on engine temperature and vehicle speed parameters. Manufactured from glass-reinforced polyamide, the duct maintains structural integrity under extreme thermal cycling conditions while resisting deformation. Precision-engineered mounting points ensure vibration-resistant attachment to the radiator support structure without stress concentration. The internal airflow channels utilize computational fluid dynamics principles to minimize turbulence while maximizing cooling efficiency. Surface geometry creates controlled pressure differentials that direct air through the radiator core with minimal energy loss. Reinforced pivot points for the control flap ensure consistent operation throughout the component's service life without wear-induced play.

51748069176

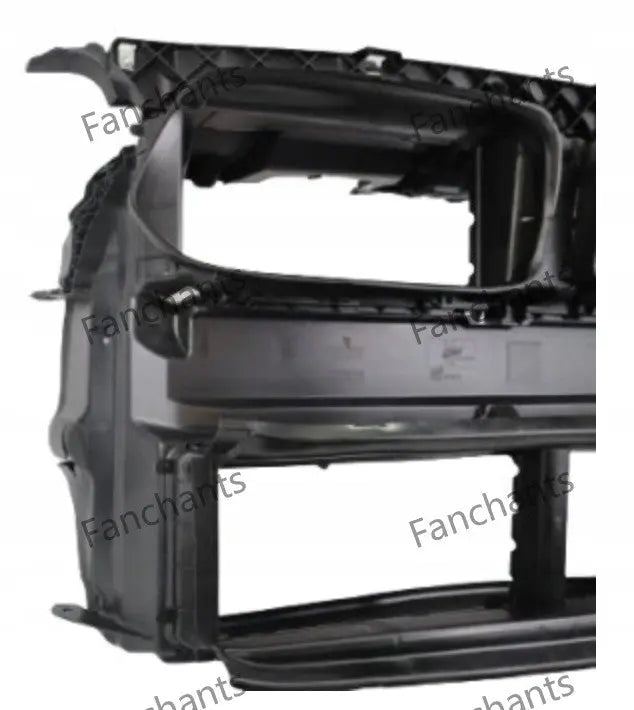

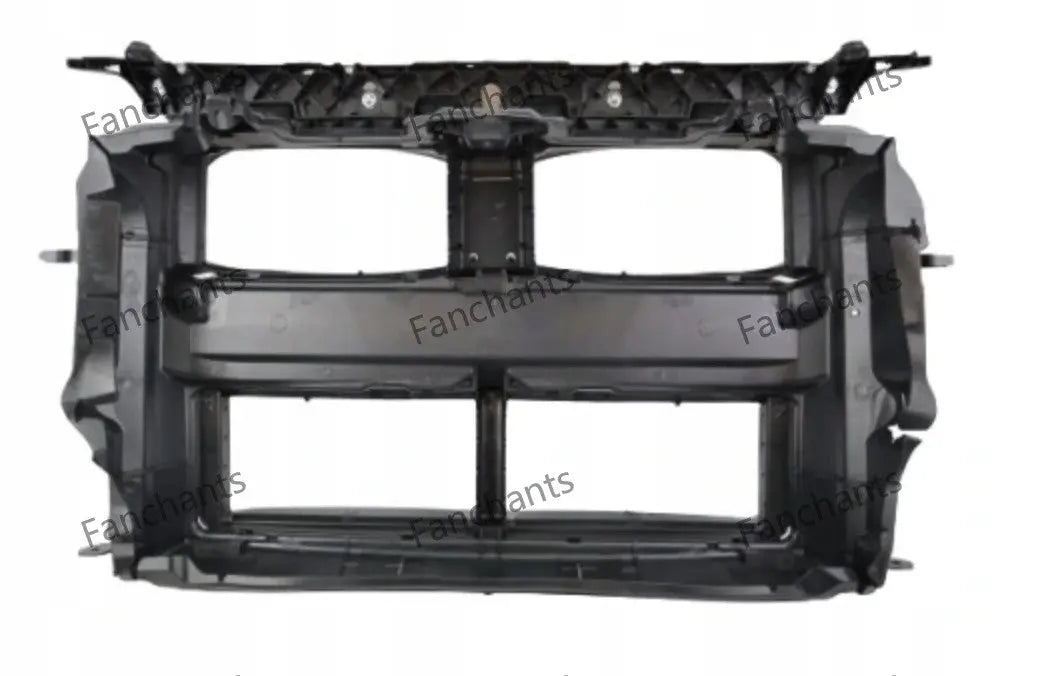

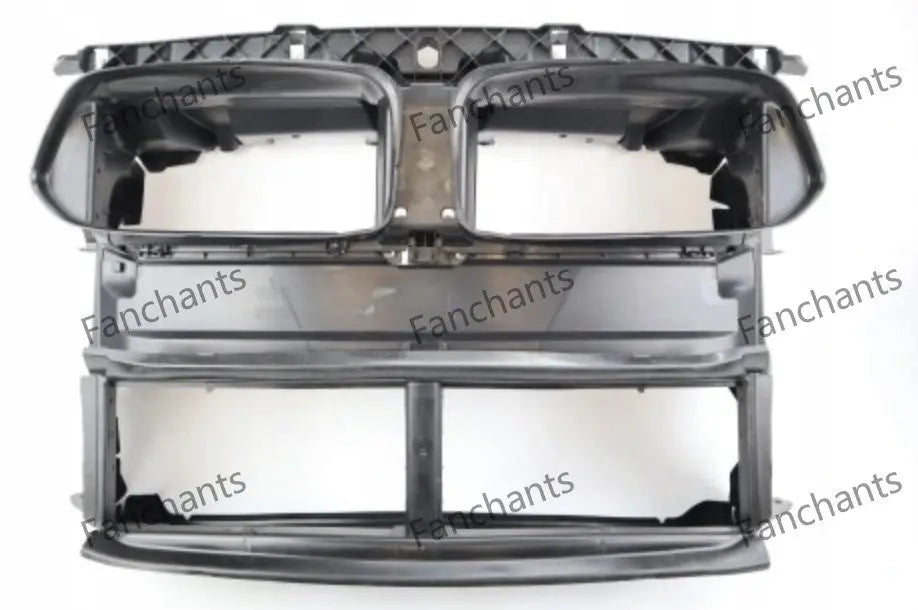

Complete assembly showing integrated flap mechanism

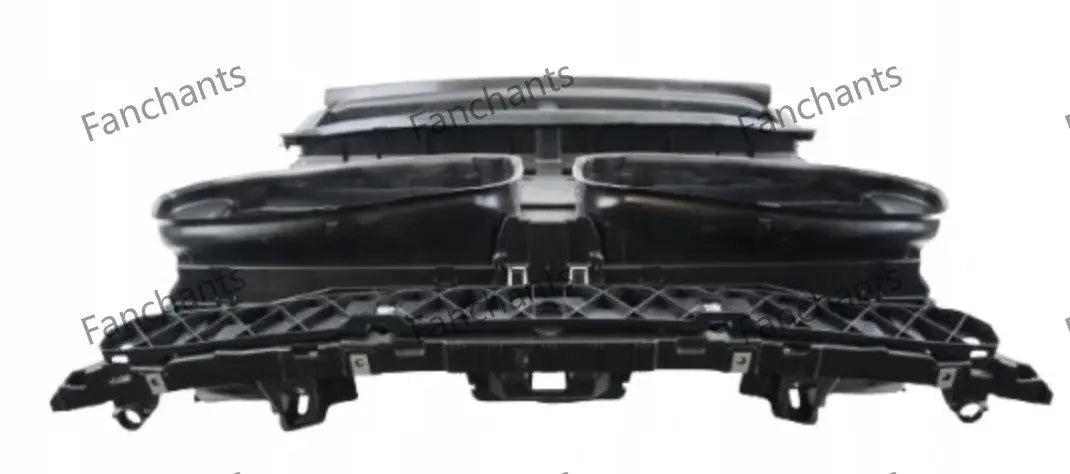

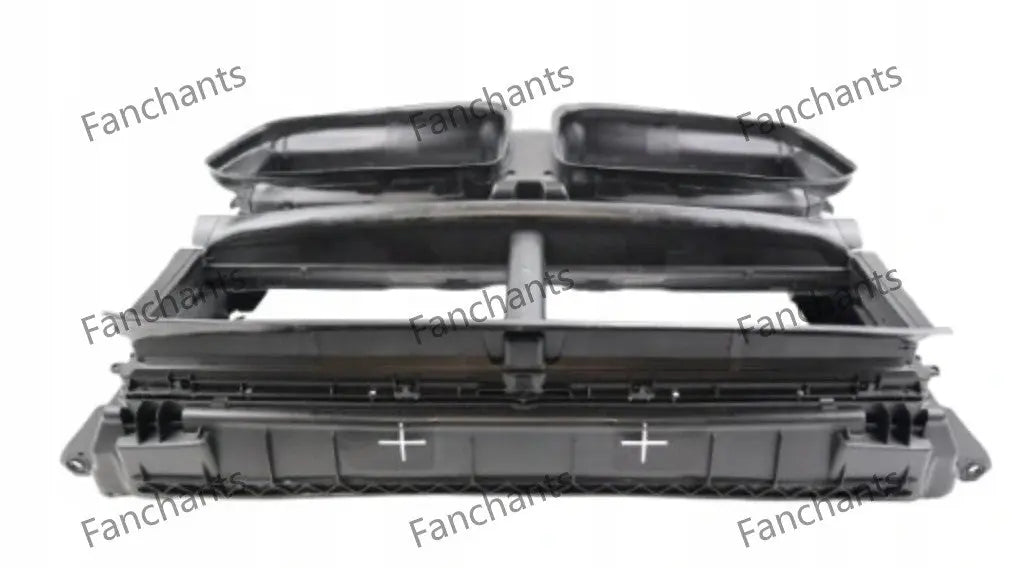

Close-up of aerodynamic channels and flap control

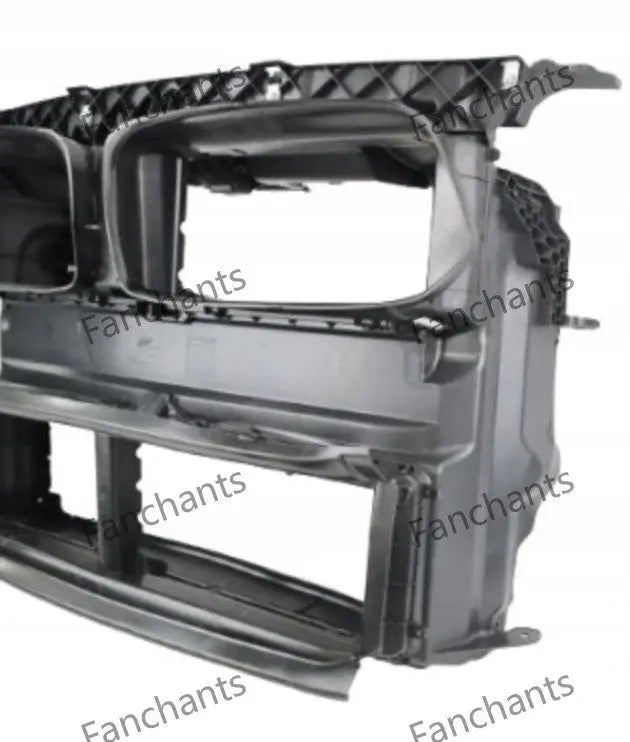

Precision airflow channels and reinforced pivot points

Comparison of OEM and replacement air duct

Exact dimensional matching for seamless integration

Engineering Specifications of 51748069176 Flap Control Air Duct

Material Innovation

Constructed from temperature-stabilized polyamide 66 reinforced with 30% glass fiber content, providing exceptional thermal resistance while maintaining dimensional stability. The material formulation includes UV-stabilizing additives that prevent embrittlement from engine compartment heat exposure. Flap mechanism incorporates self-lubricating bushings that eliminate maintenance requirements while ensuring consistent operation. Impact-resistant properties protect against road debris strikes without compromising aerodynamic efficiency. Material selection undergoes rigorous validation for continuous operation between -40°C and 130°C without deformation or loss of mechanical properties.

Aerodynamic Engineering

Wind tunnel-developed internal geometry creates optimized pressure gradients that accelerate airflow across critical cooling surfaces. The variable-position flap adjusts between 15° and 75° angles based on thermal management requirements. Air channel surfaces feature turbulence-reducing texturing that maintains laminar flow characteristics. Computational fluid dynamics analysis ensures uniform air distribution across the radiator core surface area. Integrated vortex generators at duct entry improve flow attachment while reducing boundary layer separation. Aerodynamic efficiency reduces engine load by minimizing airflow resistance at highway speeds.

Integration Features

Precision-molded mounting points maintain exact positioning relative to radiator assembly and front bumper structure. Integrated sealing surfaces create air-tight connections with adjacent components to prevent airflow leakage. Actuator connection points feature reinforced sockets that prevent connector fatigue during vibration exposure. Service-friendly design allows installation without special tools or bumper removal. Accommodates factory-installed temperature sensors and wiring harnesses without modification. Flap position indicators provide visual verification of proper operational status during maintenance checks.

Compatibility Information

This 51748069176 Flap Control Air Duct provides direct fitment for BMW X2 F39 models manufactured between 2017 and 2021. Verified compatibility with all engine configurations including gasoline and diesel variants within the specified production period. Maintains full functionality with original thermal management systems and electronic flap actuators without requiring recalibration. Correctly interfaces with all factory-installed front-end components including radiator assemblies, condenser units, and bumper reinforcement structures. Accommodates both standard and M Sport front bumper configurations without modification. Ensures proper clearance with headlight assemblies and hood latch mechanisms. Not compatible with vehicles equipped with auxiliary oil coolers or modified cooling system configurations that alter front-end packaging.
